Overview

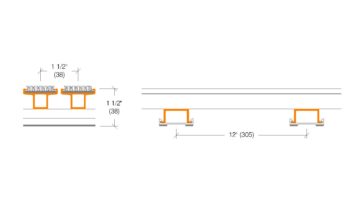

RG-300 Drain-Well® entrance mats feature 1 1/2" deep rails and can be installed as a standard level bed frame or with an option for deep pit installation (see RG-500). Box beam rails fastened 12" on center for support provide protection from vibration, and is ideal for both foot and cart traffic for heavy interior or exterior applications. RG-300 is fabricated from at least 70% recycled aluminum, helping to add to LEED credits. RG-300 handles rolling loads up to 350 pounds per wheel. All RG-300 Drain-Well® entrance mats feature:

• Six different tread insert options for up to 39 combinations of colors and functions
• Custom fabrication, including angles, arcs/radii, cutouts
• Continuous resilient vinyl cushion
• Rolling load test to 350 lbs./wheel
• Height: 1 1/2”
• Rail Material: Aluminum
• Rail Color/Finishes: Mill, Clear Anodized, Medium Bronze Anodized, Black Anodized
• Traffic: Heavy Interior or Exterior
• Deep Pit Availability: Yes (see RG-500)

Tread Insert:

• Rigid-Back Nylon Carpet(SNC) - 100% solution-dyed nylon carpet fiber

• Aluminum Abrasive(AA) - aluminum oxide tape grit adhered to mill finish aluminum rail

• Bristle Filament(BF) - bristle filament carpet

• Corrugated Aluminum(CA)- corrugated aluminum mill finish

• Maxi-Tuft Carpet(MLW) - maxi-tuft long wear carpet

• Rigid Corrugated Vinyl(RCV) - rigid corrugated vinyl (colorable)

Weight/square foot: 2.8 lbs.

Tech Info:

• RG-300-SNC.pdf
• RG-300-AA.pdf
• RG-300-BF.pdf
• RG-300-CA.pdf
• RG-300-MLW.pdf
• RG-300-RVC.pdf
• RG-300 Specification.pdf
• MR Credit 4.1 and 4.2 for RG-300 Carpet Insert.pdf
